ASTM A193 Grade B16 Bolts

Size In Ready Stock

• ASTM A193 B16 Bolts = M1.2 To M48
• ASTM A193 B16 Stud = M4 To M100

B16 Stud Bolt Head Type

• Hex head
• Truss head
• Round/Flat head
• Button head

A193 B16 Bolts Neck Type

• Hex Neck
• Triangular Neck
• Square Neck
• Knurled Neck

B16 Bolts Threads Type

• CBSF
• UN
• BSW
• UNF

ASTM A193 Grade B16 Bolts Head Drive

• Six-Lobe
• Slotted
• Phillips
• Phillips/Slot

A193 Grade B16 Stud Bolts Ends Types

• Sheared
• Flat or Saw cut
• Chamfered
• Rounded

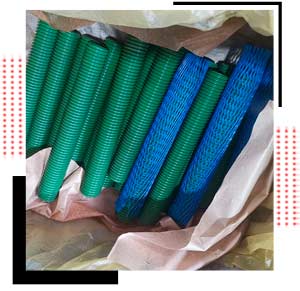

ASTM A193 B16 Threaded Rod

• Threads : Left and Right Hand, Both Side
• Condition : Threading or Cold Drawn

Grade B16 Stud Bolts

• Threads : Fully or Fine Threaded, Double End
• End Types : Flat, Rounded, and Saw Cut

Manufacturing Types

• CNC Machine
• Cold forging
• Hot forging

Advantages

• Superior Thermal Stability
• Highly Resistant to Rust
• Designed for extreme temperatures

Testing

• Corrosion Test
• Proof Load Testing
• Macro etch Test

Application

• Power Generation
• Petrochemical
• Construction

Packaging

• Custom
• Carton Box
• Wooden Cases

Raw Material Origin

• Janpanese
• European
• German

• Mn (Manganese) = 0.45 To 0.70%
• P (Phosphorus) = 0.035% (max.)
• C (Carbon) = 0.36% To 0.47%
• Si (Silicon) = 0.15 To 0.35% (Max.)
• Aluminium (Ai) = 0.015 (Max.)

• Cr (Chromium) = 0.80 To 1.15%
• Molybdenum (Mo) = 0.50 To 0.65%
• S (Sulfur) = 0.040% (Max)
• Vanadium (V) = 0.25 To 0.35%
